Five head hbending hoop machine

Keyword:

Xushi Weiye

Categorie:

CNC automatic five-head bending hoop bending machine

Support:

info@xswy-machinery.com

Send Inquiry

Relevant

Description

Hydraulic pressure	5-16Mpa	Processing capacity	1500-2000 / hour
Barometric pressure	0.4-0.6Mpa	Machine weight	1500kg
Lock the nose	Hydraulic locking	Electric voltage	380v
Sizing method	Automatic sizing	Quantity processed	φ8 11 roots
Molding speed	5 seconds		φ10 9 roots
Side length error	±2mm		φ12 5 roots
Angle error	±1°		φ14 3 roots
Overall size	800012001000mm		φ16 2 roots
Overall power	8kw		φ18 1 roots

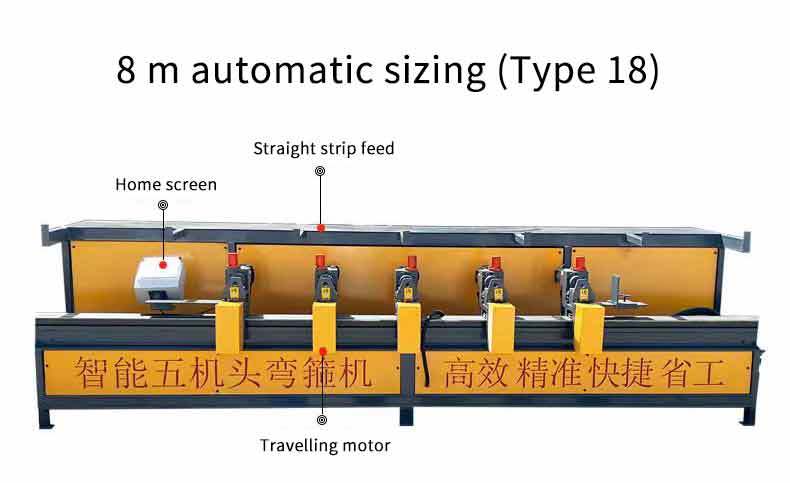

Five Head HBending Hoop Machine is designed for high-efficiency bending of reinforcement bars into hoops for construction projects. Equipped with five synchronized bending heads, it ensures precise, uniform bends and consistent hoop shapes, reducing material waste and labor intensity. The machine’s robust structure, automated control system, and safety features enhance operational reliability and efficiency. Ideal for construction sites and prefabrication plants, it streamlines rebar hoop production, improves workflow, and ensures high-quality reinforced concrete structures.

Send Inquiry

Submit

Hebei Xushi Weiye

Add: Qiaoxi street,Wuqiang county, Hengshui, China

Email: info@xswy-machinery.com

Wechat: Amanda_XUSHIWEIYE

Whatsapp: +8615933856555

Tel: +8618612768278 +8615933856555
